Wytrawianie PCB
All you need:

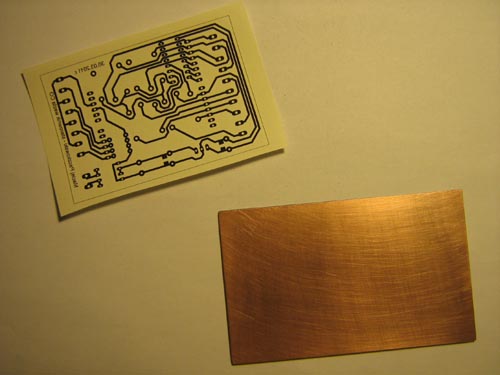

You have to print PCB project on silicon paper
Remember! If you print top side (red) - you have to print mirror!

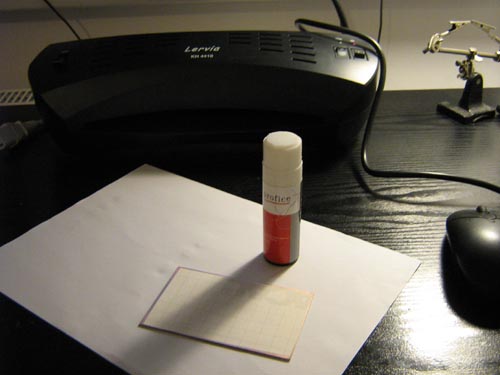

Now glue (just corners) paper to laminate.

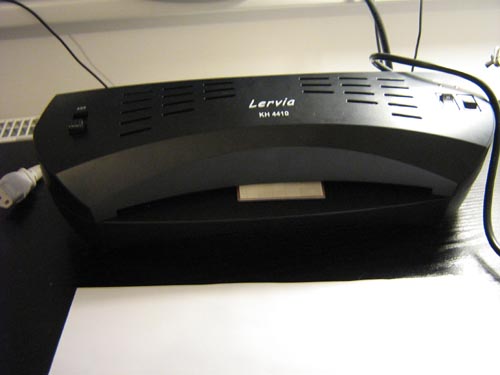

Turn on your laminator (minimum 120'C).
Next put your "PCB" into the paper feed in your laminator. Repeat this 4-6 times. Maximum 5 minutes.

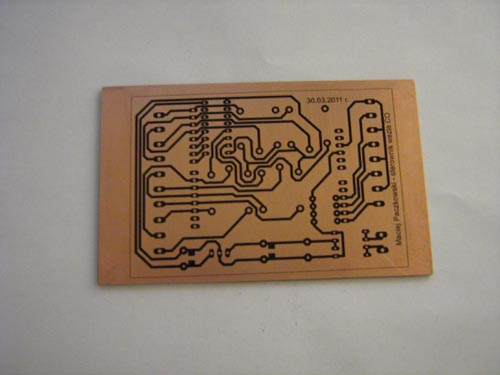

Now wait few minutes, and after this carefully take out the paper.

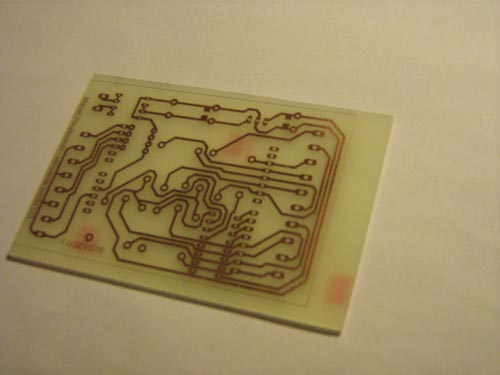

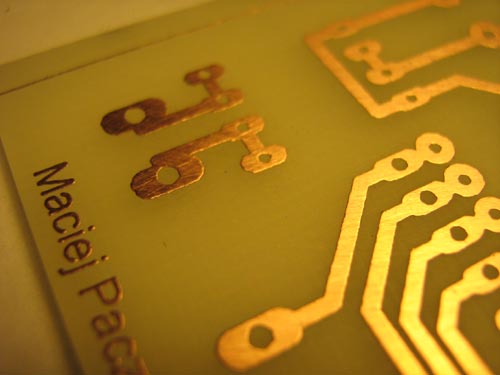

Put your laminate to B327. And after 10 minutes you've got ready PCB :)
- Project of PCB (eagle/protel/pdf)
- Silicon paper
- Glue stick
- Copper clad laminate
- Cheap laminator
- Some PCB Etching Chemical - B327
You have to print PCB project on silicon paper
Remember! If you print top side (red) - you have to print mirror!
Now glue (just corners) paper to laminate.
Turn on your laminator (minimum 120'C).
Next put your "PCB" into the paper feed in your laminator. Repeat this 4-6 times. Maximum 5 minutes.
Now wait few minutes, and after this carefully take out the paper.
Put your laminate to B327. And after 10 minutes you've got ready PCB :)
